产品名称：船用通信电缆
产品型号：CHJ85/SC/NSC
产品规格：可选
执行标准：IEC60092-350/353/351
电压等级：0.6/1KV
环境温度：90℃

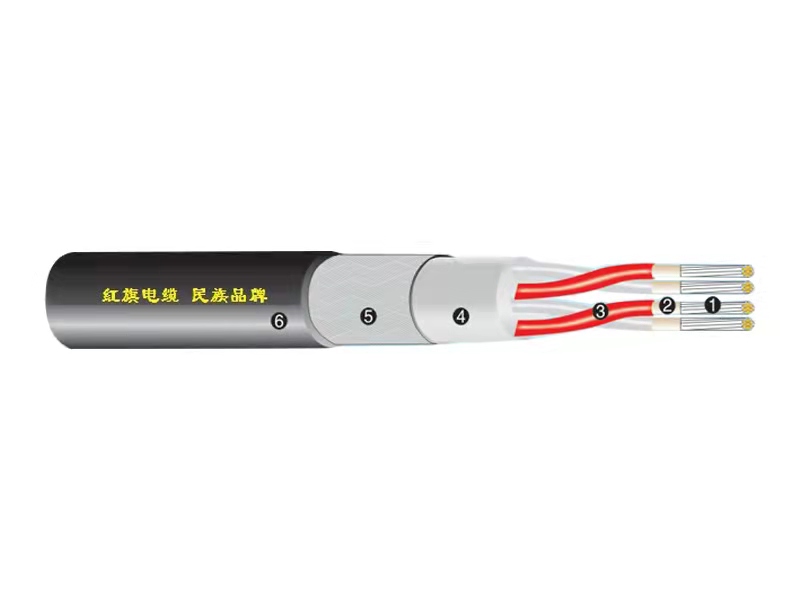

产品说明：交联聚乙烯绝缘镀锡铜丝屏蔽交联聚烯烃护套船用阻燃耐火通信电缆；
产品用途：用于河海各种船舶及海上石油平台等水上建筑的电力、照明和一般控制之用。对冶金、化工、电力等工矿企业也同样适用。
起订量：100米
提供证书：CCS、ABS、GL、BV、DNV、NK、KR、RINA等多国船级社认证。
规格 | 电境外轻 | 计算重量 | 规格 | 电境外径 | 计算重量 |
1×2×0.75 | 9.1 ±0.8 | 101 | 1×2×1.0 | 9.5 ±1.0 | 111 |
2×2×0.75 | 13.2±1.0 | 169 | 2×2×1.0 | 14.0±1.0 | 199 |
3×2×0.75 | 14.4±1.0 | 238 | 3×2×1.0 | 15.1士1.0 | 266 |
4×2×0.75 | 15.7士1.0 | 283 | 4×2×1.0 | 16.4士1.0 | 318 |
5×2x0.75 | 17.1±1.0 | 330 | 5×2×1.0 | 18.1土1.0 | 372 |
7×2×0.75 | 18.8±1.0 | 404 | 7×2×1.0 | 19.7±1.0 | 460 |
10×2×0.75 | 24.2±1.5 | 566 | 10×2×1.0 | 25.3±1.5 | 647 |
12×2×0.75 | 24.9±1.5 | 631 | 12×2×1.0 | 26.4±1.5 | 724 |
14×2×0.75 | 26.4± 1.5 | 704 | 14×2×1.0 | 27.7±1.5 | 812 |
16×2×0.75 | 27.8±1.5 | 782 | 16×2×1.0 | 29.4±1.5 | 904 |
19×2×0.75 | 29.5±1.5 | 887 | 19×2×1.0 | 31.0±1.5 | 1029 |
24×2x0.75 | 34.7±1.5 | 1117 | 24×2×1.0 | 36.6±1.5 | 1296 |
27x2×0.75 | 35.6±1.5 | 1209 | 27×2×1.0 | 37.4±1.5 | 1407 |
30×2×0.75 | 36.9主1.5 | 1313 | 30×2×1.0 | 39.2土1.5 | 1531 |
37×2×0.75 | 40.0± 2.0 | 1642 | 37×2×1.0 | 42.5±2.0 | 1912 |
1×2×1.5 | 10.3±1.5 | 136 | 1×2×2.5 | 11.4±1.0 | 170 |
2×2×1.5 | 15.5±1.0 | 256 | 2×2×2.5 | 17.3±1.0 | 308 |
3×2×1.5 | 16.4±1.0 | 335 | 3×2×2.5 | 18.3±1.0 | 430 |
4×2×1.5 | 18.1±1.0 | 405 | 4×2×2.5 | 20.2±1.5 | 527 |
5×2×1.5 | 20.0±1.5 | 478 | 5×2×2.5 | 22.3士1.5 | 627 |
7×2×1.5 | 21.8± 1.5 | 598 | 7×2×2.5 | 24.3±1.5 | 797 |
10×2×1.5 | 28.2士1.5 | 847 | 10×2×2.5 | 31.6±1.5 | 1134 |
12×2×1.5 | 29.1±1.5 | 955 | 12×2×2.5 | 32.6±1.5 | 1290 |
14×2×1.5 | 30.7±1.5 | 1075 | 14×2×2.5 | 34.5±1.5 | 1459 |
16×2×1.5 | 32.5±1.5 | 1201 | 16×2×2.5 | 36.6±1.5 | 1637 |
19×2×1.5 | 34.5±1.5 | 1374 | 19×2×2.5 | 38.6±1.5 | 1969 |
24×2×1.5 | 40.8±2.0 | 1827 | 24×2×2.5 | 45.9±2.0 | 2488 |
27×2×1.5 | 41.7±2.0 | 1984 | 27×2×2.5 | 46.9±2.0 | 2715 |
30×2×1.5 | 43.4±2.0 | 2160 | 30×2×2.5 | 48.9±2.0 | 2965 |
37x2×1.5 | 47.0±2.0 | 2571 | 37×2×2.5 | 53.2士2.0 | 3550 |
